Got sneaky with heat exchanger upgrade

2Cool

Well-Known Member
First Name
Ian
Joined
Dec 3, 2025
Threads
8
Messages
52
Reaction score
122
Location
Florida
Car(s)
2024 Nissan Z Performance
To avoid as much possibility of air bubble issues as possible, I did a few things when changing to my new Z1 unit.

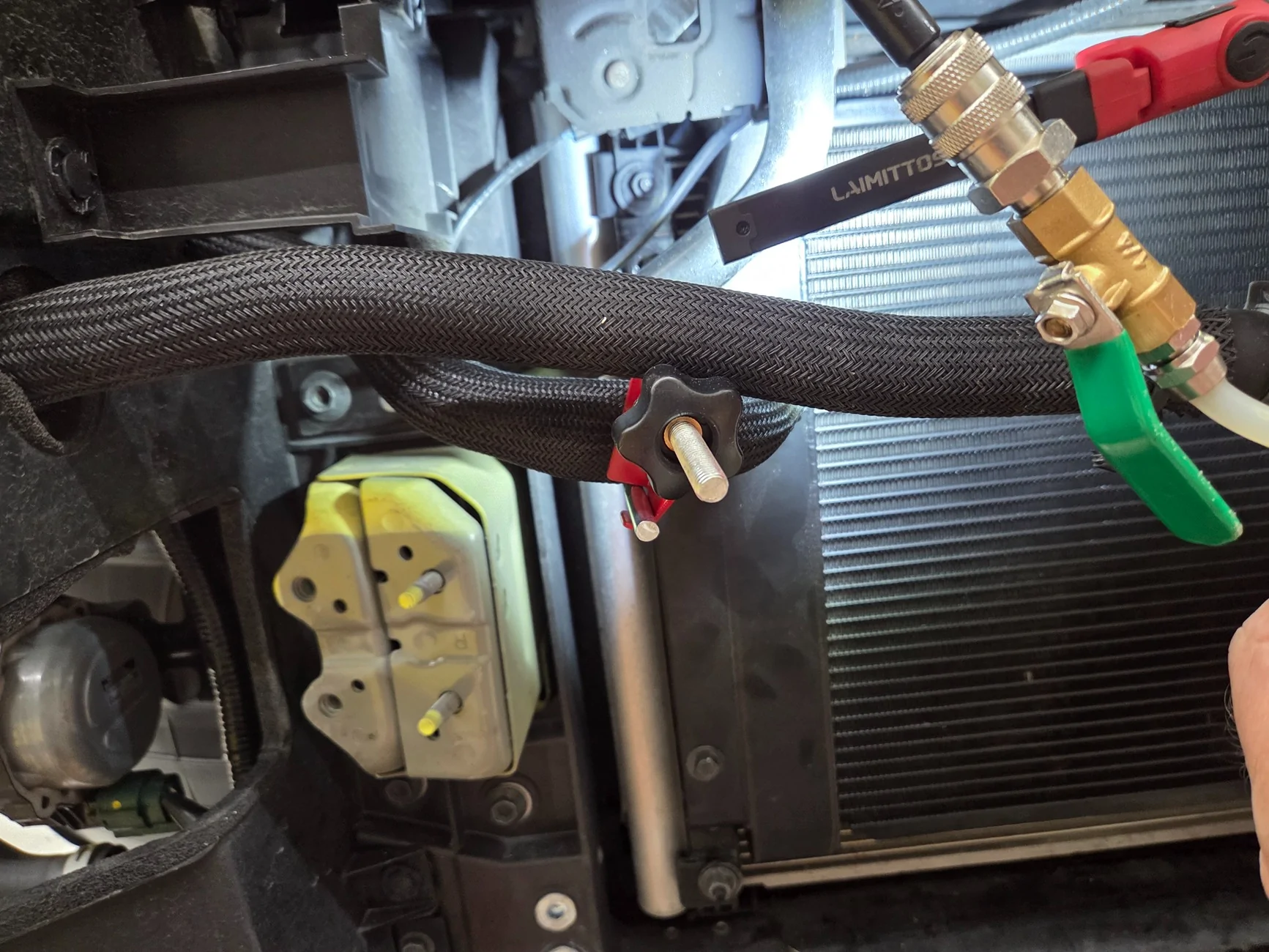

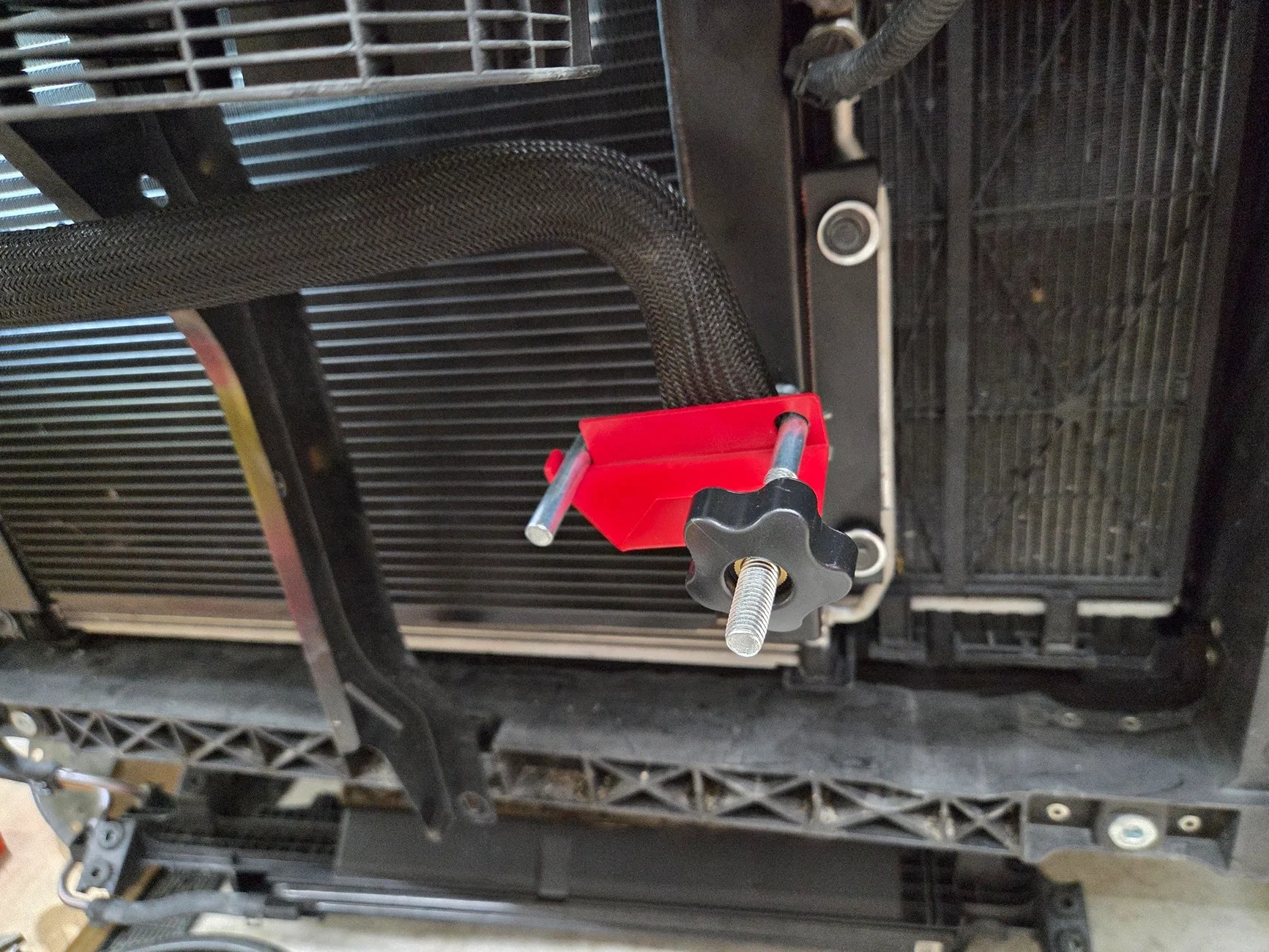

First I used some good hose clamps, sealing the lines a couple inches out from the cooler. Then I removed everything possible before removing the hoses. Then I did a quick swap, catching all coolant, and dumping the oem cooler into the catch bucket. Installed the new exchanger, but before I loosened the clamps I took off the bleed screw. I filled the new exchanger with the old coolant plus a bit of new to make up the difference. Waited a few, topped off again, installed bleed screw. Removed clamps.

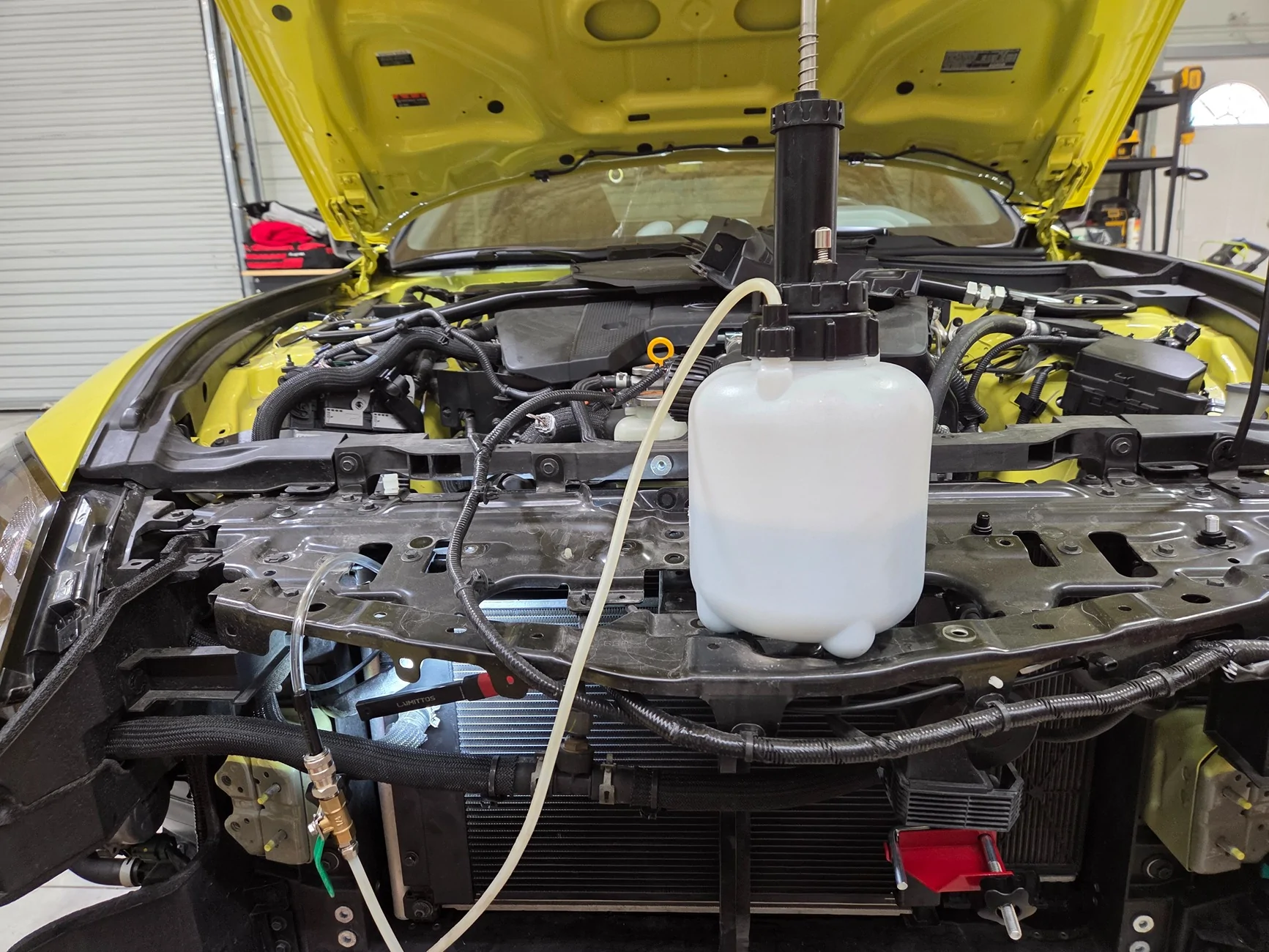

No drop in reservoir level. Will do a vacuum draw on it, but really don't expect any issues.







thesilverbullet

Well-Known Member
First Name
Silver
Joined
Jun 16, 2024
Threads
7
Messages
770
Reaction score
746
Location
Clemson
Car(s)
‘25 PRFM M/T Gun Metallic
Occupation
EE
Awesome - plan on doing the same thing to prevent \ minimize air in hoses & intercoolers. I was thinking about using a plug but clamps looks like a good idea.

what are you using to pull a vacuum?
