Alignment after RSR Springs

[jliuod]

I am very pleased with the way the RSR springs made the car looked as well as the improved performance. Keep in mind I have 15mm/20mm spacers F/B.

Today I had an alignment done. The technician was the same person who did my Miata a while back. He was very engaging with me throughout the whole process. I had some specific alignment numbers in mind. He was very patient to make sure I was happy with the numbers.

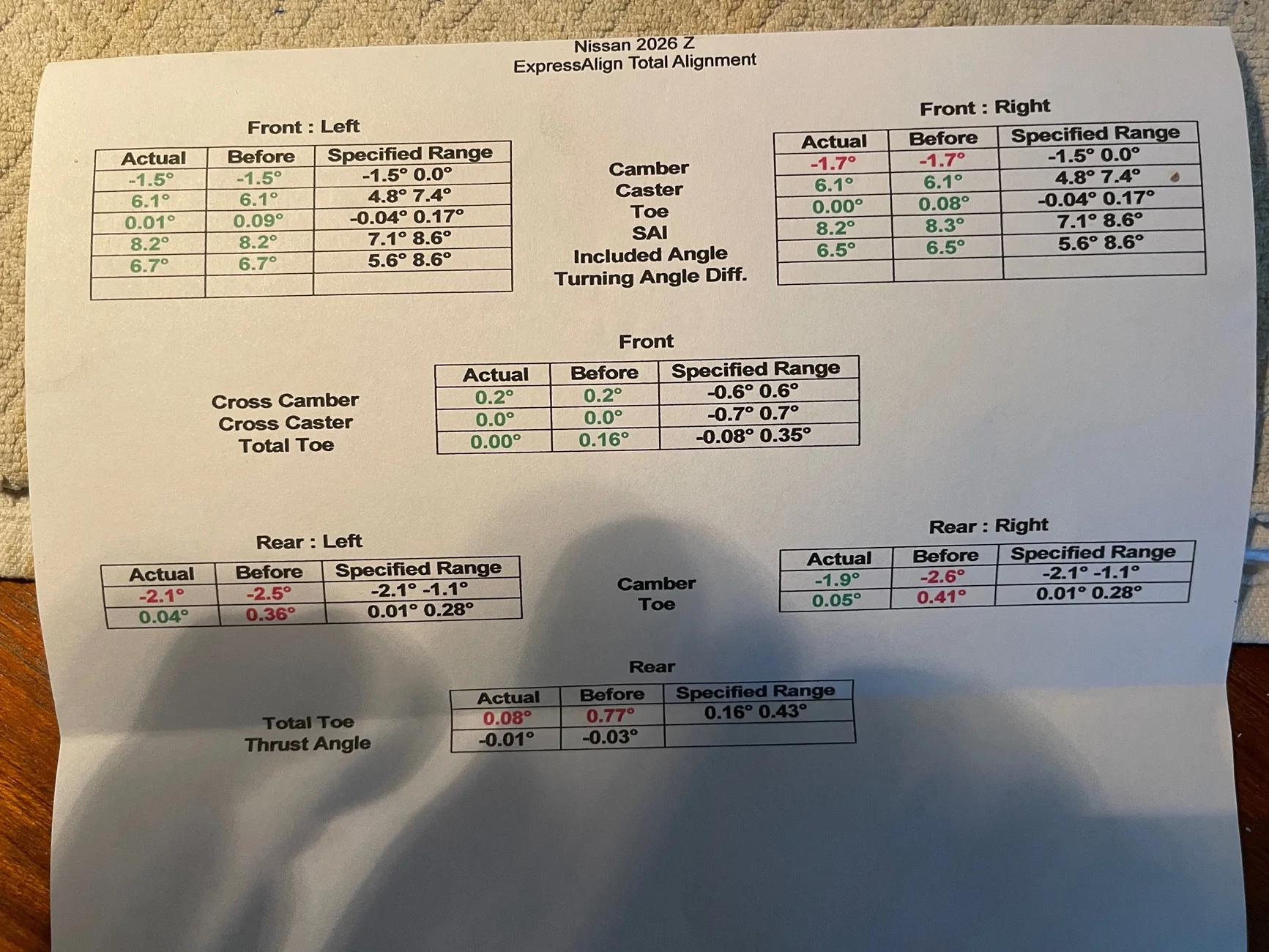

Here are the final specs on my alignment.



[GupsTT]

I would love to see pictures of the rsr with 15/20 spacers.

Which spacers did you use



[jliuod]

I would love to see pictures of the rsr with 15/20 spacers.

Which spacers did you use

I will try to take some photos today. I just used some generic spacers. I have used generic spacers on many cars and had absolutely no issues at all. Most of the so called "brand name" spacers are all manufactured in China anyway.



[GupsTT]

Ah ok ive read in previous threads that 15mm spacers in the front ran into some issues. So I was curious.



[jliuod]

Ah ok ive read in previous threads that 15mm spacers in the front ran into some issues. So I was curious.

You are correct. I actually found this issue out myself. My front wheels were stuck to the hub after I installed the bolt with the 15mm spacers. The stock studs were a tad longer for the 15mm spacers. What happened was I was compressing the studs slightly into the back of the wheels. I had to use a block of wood and hit it with a hammer from the inside of the wheels to knock them off. No big deal. There were indentations in the back of the wheels caused by the studs. I did not want to go through the hassles of replacing the stock studs with shorter ones. I used a round die grinder to slightly smooth out the indentations and now my wheels fit with the 15mm spacers without binding.



[GupsTT]

Wow ok good to know. Thanks
