Gauges

Bucko

Active Member
First Name
Jim
Joined
Feb 27, 2023
Threads
4
Messages
36
Reaction score
38
Location
Nashville
Car(s)
2023 Z Permformance Black Diamond Pearl (Graphite)
I've recently noticed some pictures of the gauge displays on the instrument panel that show an oil pressure gauge. Is it a correct assumption that the 6MT cars display engine oil pressure while 9AT cars display engine oil temperature? Any way to show engine oil pressure on a 9AT car? Like most subjets, the owners manual is fairly cryptic on the subject.


SDate42

Member
First Name
Samuel
Joined
May 29, 2023
Threads
1
Messages
8
Reaction score
18
Location
Sydney, Australia
Car(s)
Nissan Z, BMW 130i, Mitsubishi Pajero & Lancer
Occupation
Auto electrician/mechanic

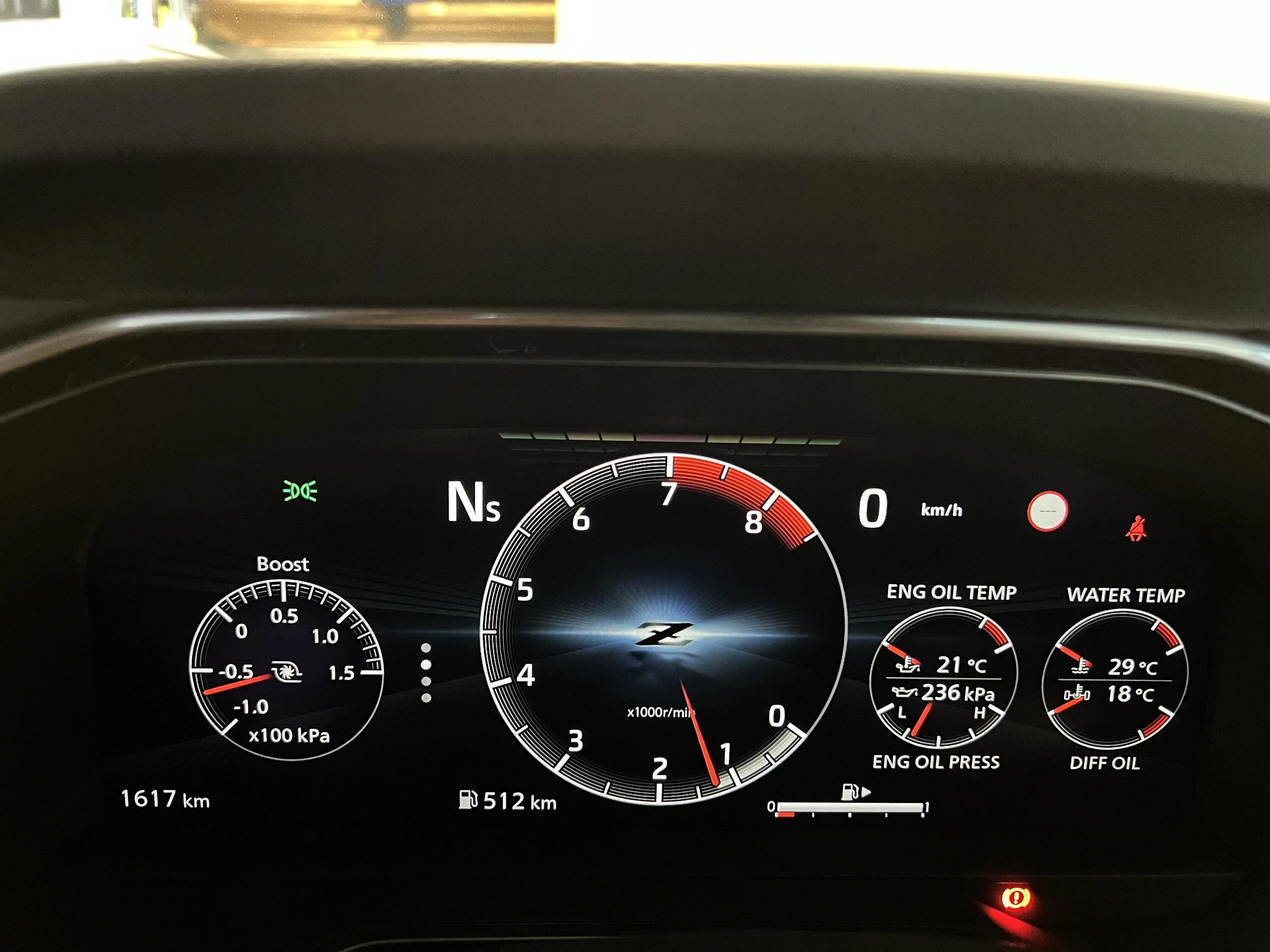

In Sport mode, the instrument cluster displays engine oil temp, engine oil pressure, coolant temp and diff oil temp. I have a 6MT, so looks like you’ll have to wait for an auto owner to reply.

OP
OP
Bucko

Bucko

Active Member
First Name
Jim
Joined
Feb 27, 2023
Threads
4
Messages
36
Reaction score
38
Location
Nashville
Car(s)
2023 Z Permformance Black Diamond Pearl (Graphite)
In Sport mode, the instrument cluster displays engine oil temp, engine oil pressure, coolant temp and diff oil temp. I have a 6MT, so looks like you’ll have to wait for an auto owner to reply.
Thanks for your response. So it looks like maybe the 9AT has transmission oil temp in place of engine oil pressure.


SavedByFaith_

Well-Known Member
First Name
Stephen
Joined
May 25, 2022
Threads
3
Messages
162
Reaction score
218
Location
Canada
Car(s)
2024 Z Nismo
Can confirm the auto shows oil temp instead of pressure

Have not seen anything to change this.


Pr4mnz

Member
First Name
Kerry
Joined
Jun 10, 2023
Threads
2
Messages
13
Reaction score
30
Location
Mississippi
Car(s)
2023 Z Sport, 2021 Audi SQ8, 2021 BMW M440 vert
Thanks for your response. So it looks like maybe the 9AT has transmission oil temp in place of engine oil pressure.

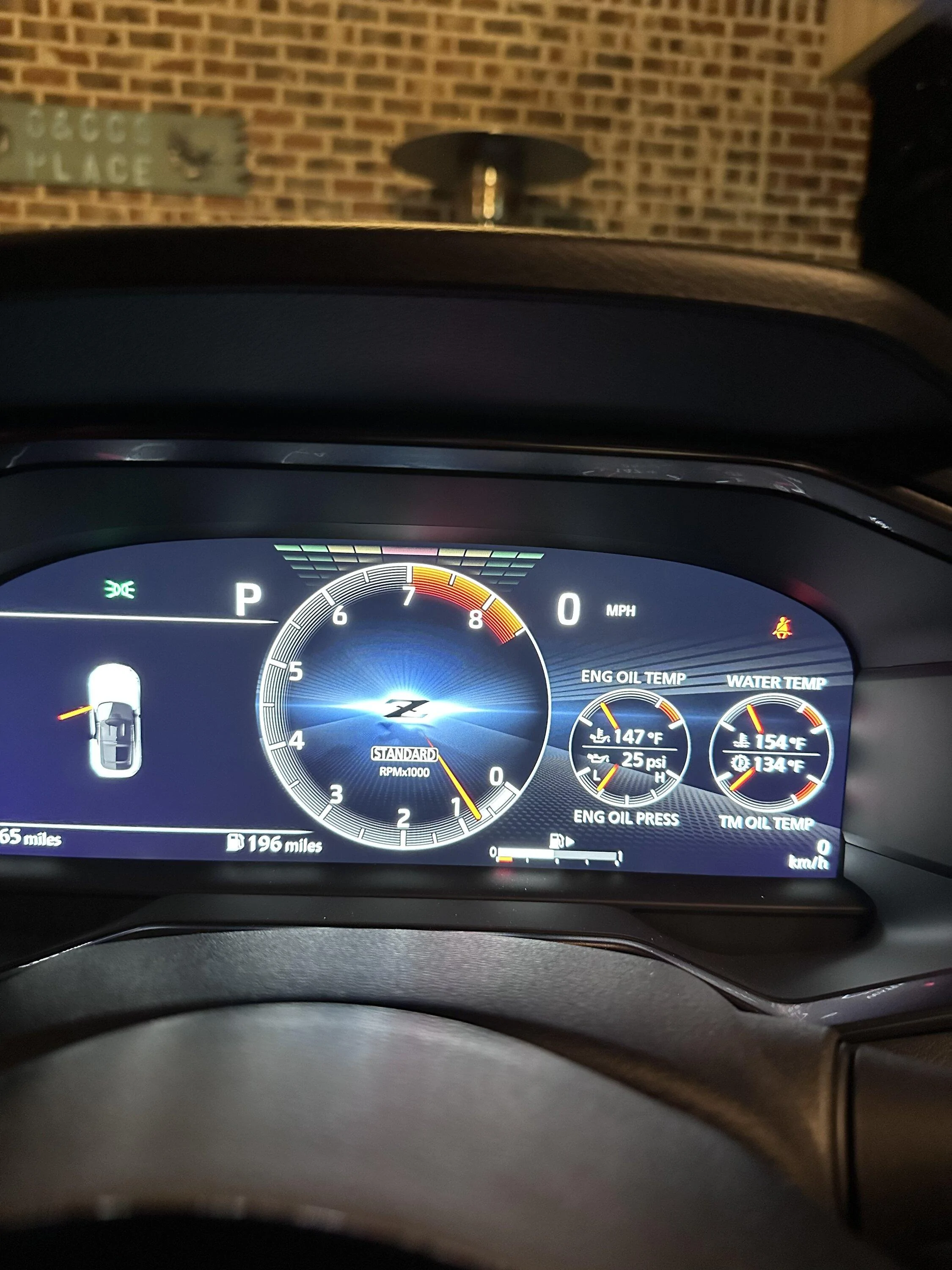

Sport model displays both oil temp and pressure as will as water and differential temps. This 9AT Sport.

OP
OP
Bucko

Bucko

Active Member
First Name
Jim
Joined
Feb 27, 2023
Threads
4
Messages
36
Reaction score
38
Location
Nashville
Car(s)
2023 Z Permformance Black Diamond Pearl (Graphite)
Sport model displays both oil temp and pressure as will as water and differential temps. This 9AT Sport.
That's interesting. Mine is a 9AT Performance. No oil pressure display.


SDate42

Member
First Name
Samuel
Joined
May 29, 2023
Threads
1
Messages
8
Reaction score
18
Location
Sydney, Australia
Car(s)
Nissan Z, BMW 130i, Mitsubishi Pajero & Lancer
Occupation
Auto electrician/mechanic
Aaahh! I guess if it has LSD you get the diff oil gauge… so on auto with the lsd you loose oil pressure.

6MT gets engine oil pressure and diff
Std auto gets trans temp and engine oil pressure

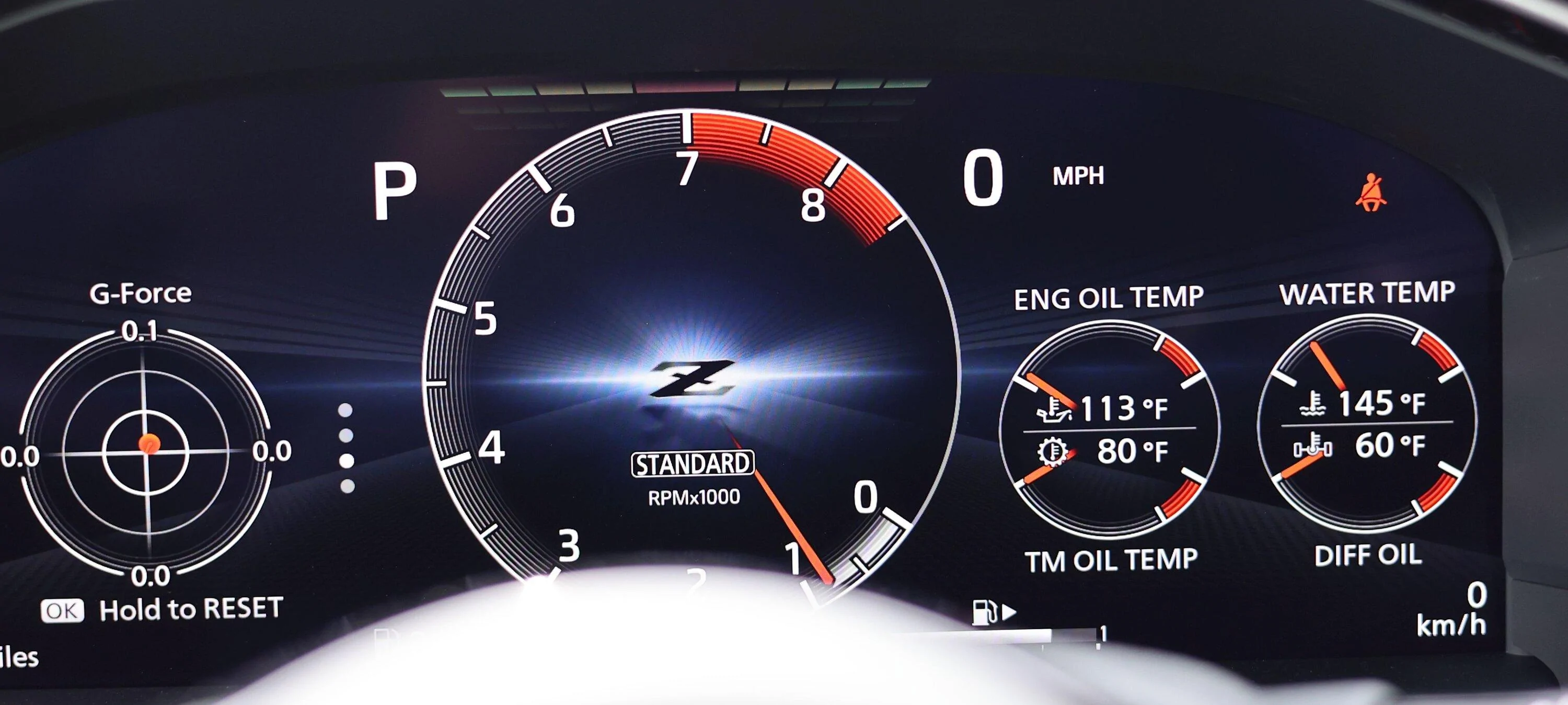

Auto performance trans temp and diff

weird there’s no literature about it all… interested to see if the above is right or wrong as cars keep being released. To note I’m aus based as some of these replies also seem to be

OP
OP
Bucko

Bucko

Active Member
First Name
Jim
Joined
Feb 27, 2023
Threads
4
Messages
36
Reaction score
38
Location
Nashville
Car(s)
2023 Z Permformance Black Diamond Pearl (Graphite)
...weird there’s no literature about it all… interested to see if the above is right or wrong as cars keep being released. To note I’m aus based as some of these replies also seem to be
Here is what the owner's manual states:

*****************************************
4 gauges

The 4 gauges may display the following

items if the vehicle is equipped with them:

. Engine oil temperature gauge

. Engine oil pressure gauge

. Engine coolant temperature gauge

. Transmission oil pressure gauge

. Differential gear oil temperature

gauge

. Accelerator opening gauge
****************************************


It may, and then again, it may not. :)


bpeckham

Well-Known Member
First Name
Bill
Joined
Feb 11, 2023
Threads
38
Messages
929
Reaction score
904
Location
San Diego
Car(s)
2023 Z Performance 6MT Blue/Graphite
Here is what the owner's manual states:

...

. Accelerator opening gauge

It may, and then again, it may not. :)

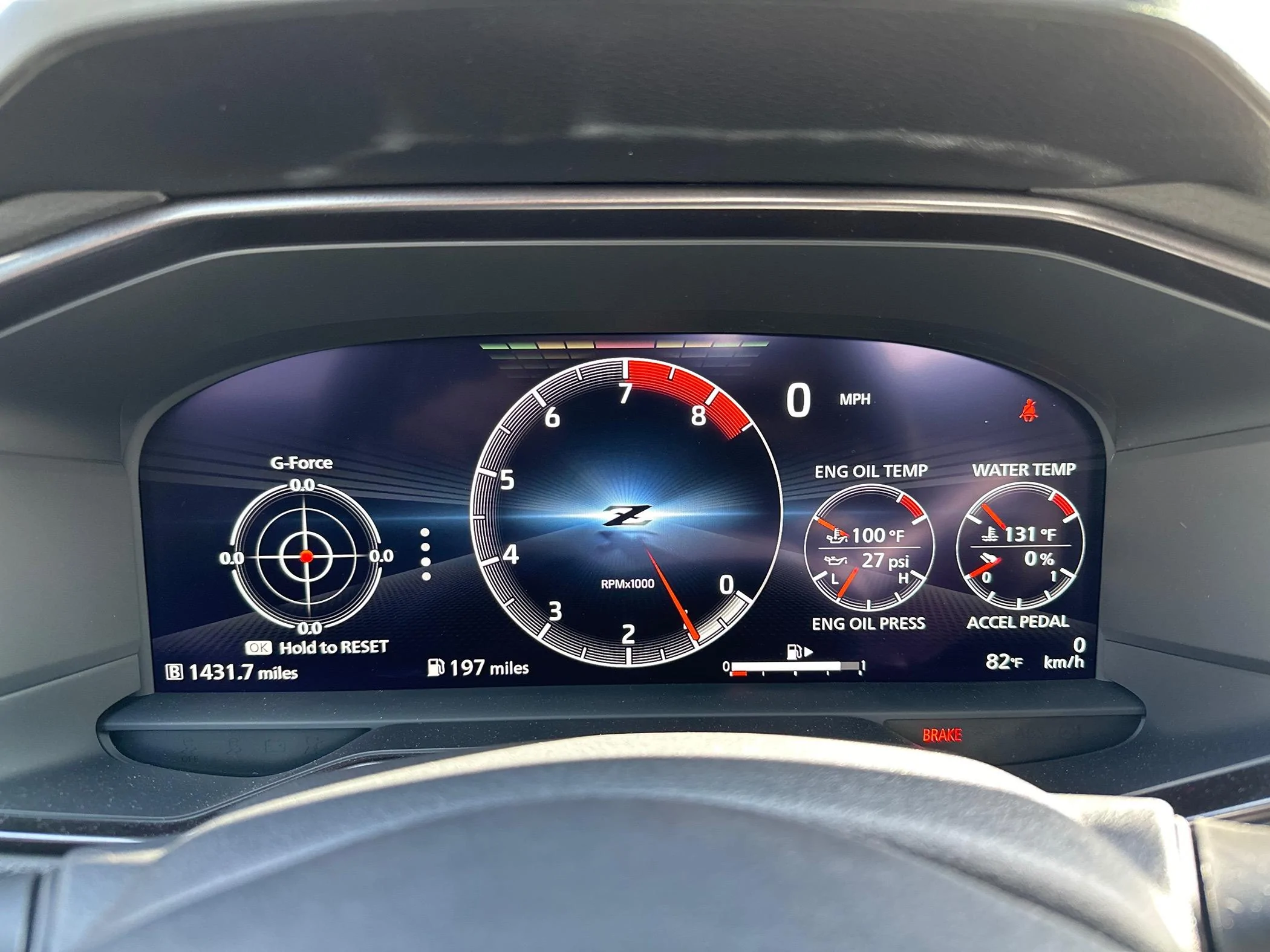

If anybody has seen Accelerator opening gage, please post a picture. I don't think it really exists. Prove me wrong. If you post it, state your market and spec, please.


chris barclay

New Member
First Name
Chris
Joined
Feb 1, 2023
Threads
0
Messages
4
Reaction score
4
Location
auckland new zealand
Car(s)
2023 Nissan Z Nissan 370z
Occupation
Musician Teacher Personal Trainer
I've recently noticed some pictures of the gauge displays on the instrument panel that show an oil pressure gauge. Is it a correct assumption that the 6MT cars display engine oil pressure while 9AT cars display engine oil temperature? Any way to show engine oil pressure on a 9AT car? Like most subjets, the owners manual is fairly cryptic on the subject.
I've recently noticed some pictures of the gauge displays on the instrument panel that show an oil pressure gauge. Is it a correct assumption that the 6MT cars display engine oil pressure while 9AT cars display engine oil temperature? Any way to show engine oil pressure on a 9AT car? Like most subjets, the owners manual is fairly cryptic on the subject.
I wondered this too. Someone just answered my question for me in the thread too. 🙏
